Production of Enameled Wire

Enameled wire is a type of wire that is widely used in electronic devices, transformers, motors, and other applications where electrical insulation is required. The process of making enameled wire is complex and involves several steps. In this article, we will discuss the process of making enameled wire in detail.

Step 1: Wire Drawing

The first step in making enameled wire is wire drawing. In this process, a copper rod is drawn through a series of dies to reduce its diameter. The wire is then annealed to make it more flexible.

Step 2: Cleaning

The second step is cleaning the wire. The wire is cleaned to remove any impurities and to ensure that the enamel adheres properly to the copper wire. The wire is cleaned using a solution of sodium hydroxide and water.

Step 3: Enamel Application

The third step is the application of the enamel. The enamel is applied to the wire using a process called dip coating. The wire is dipped into a bath of enamel, and then it is passed through a series of dies to remove any excess enamel. The wire is then dried in an oven.

Step 4: Curing

The fourth step is curing the enamel. The wire is passed through a furnace at a high temperature, which causes the enamel to melt and fuse to the wire. The wire is then cooled in a water bath.

Step 5: Testing

The fifth step is testing the wire. The wire is tested to ensure that it meets the required electrical and mechanical properties. The tests include high voltage testing, abrasion resistance testing, and elongation testing.

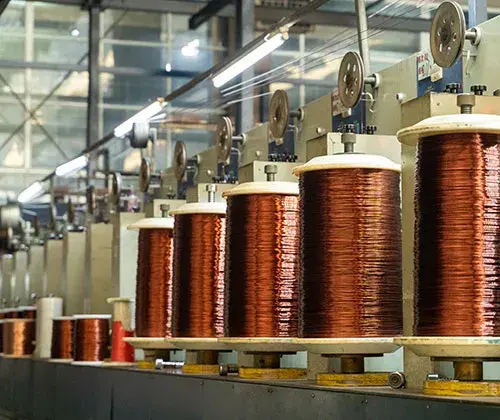

Step 6: Cutting and Spooling

The final step is cutting and spooling the wire. The wire is cut to the required length and then spooled onto a reel. The spooled wire is then ready for shipment.

In conclusion, the process of making enameled wire is complex and involves several steps. The wire drawing, cleaning, enamel application, curing, testing, cutting, and spooling are all important steps in the process. The quality of the enameled wire depends on the quality of each step in the process. The finished product is a high-quality wire that is widely used in the electrical and electronic industry.
